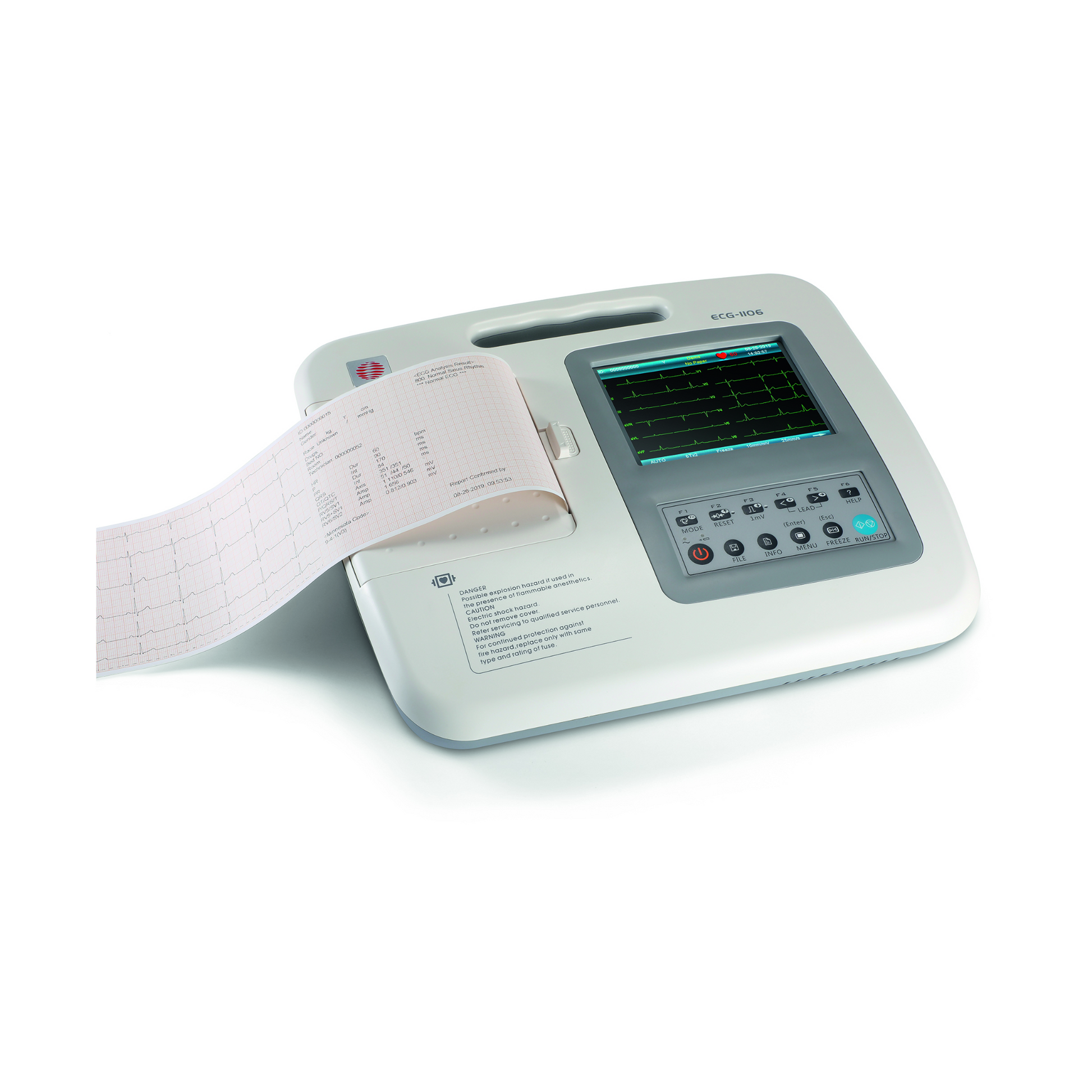

6-Channel Electrocardiograph Interpretation

General characteristics:
• Large, portable, stand-alone color touch screen. 12 simultaneous leads.
• 6-inch (12-lead) color LCD touch screen.
• Thermal printer – Number of channels: 6, 3, 3+, 3+++.
• “Freeze Trace” button.
• Alphanumeric keyboard.
• Modes: automatic, manual, rhythm (1 min with RR interval analysis).
• Automatic parameter calculation and interpretation.
• Internal memory of 180 ECG traces.
• Integrated carrying handle.
• Connectivity: USB, network (for upgrade), RS232.
• Optional PC transfer software, direct export in different formats.
• Technical characteristics:
• Sensitivity: Auto, 2.5, 5, 10, 20, 40 (mm / mV) ± 5%.
• Speed: 5/6.25/10/12.5/25/50 mm/s ± 3%.
• EMG filter: 25/45 Hz – Anti-drift filter.
• Response frequency: 0.05Hz~165Hz.
• Screen resolution: 640 x 480 pixels.
• Printing mode: thermal comb.
• 2 hours of battery life.
• Paper width: 112 mm (roll).

Comes with:
• Patient cable with banana plugs.
• 4 member clamps.
• 6 precordial pears.

Warranty: 2 years (except accessories)
Power supply : mains or lithium-ion battery
