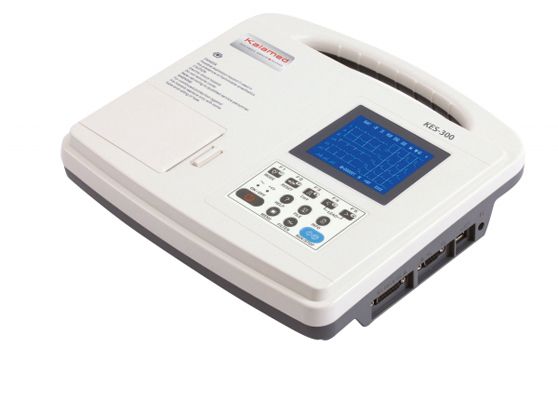

3-Channel Electrocardiograph Interpretation

Portable – Lightweight – Autonomous.
12 simultaneous derivations.
Mains/battery power supply.
3.8 inch LCD display, 3 or 12 leads.
Easy to handle with its LCD screen, user assistance menu.
Modes: automatic, manual, rhythm (1 min with RR interval analysis).
Automatic parameter calculation.
Internal memory for 12 ECG traces.
Optional SD card (internal) for 250 ECG traces.
Integrated carrying handle.
Connectivity: USB, network, RS232.
Optional PC transfer software, direct export in different formats.
Features :
Sensitivity: auto, 2.5, 5, 10, 20, 40 mm / mV (± 5%).
Speed: 5 / 6.25 / 10 / 12.5 / 25 / 50 mm/s (± 3%).
EMG filter: 25/45 Hz.
Response frequency: 0.05Hz~165Hz.
Printing mode: thermal comb.
Paper width: 63 mm (roll).
Complete weight (with battery and mains power supply): 2.5 kg.
Comes with:
Patient cable with banana plugs, 4 limb clips, 6 precordial bulbs.

Weight: 2.5 kg
Warranty : 2 years
