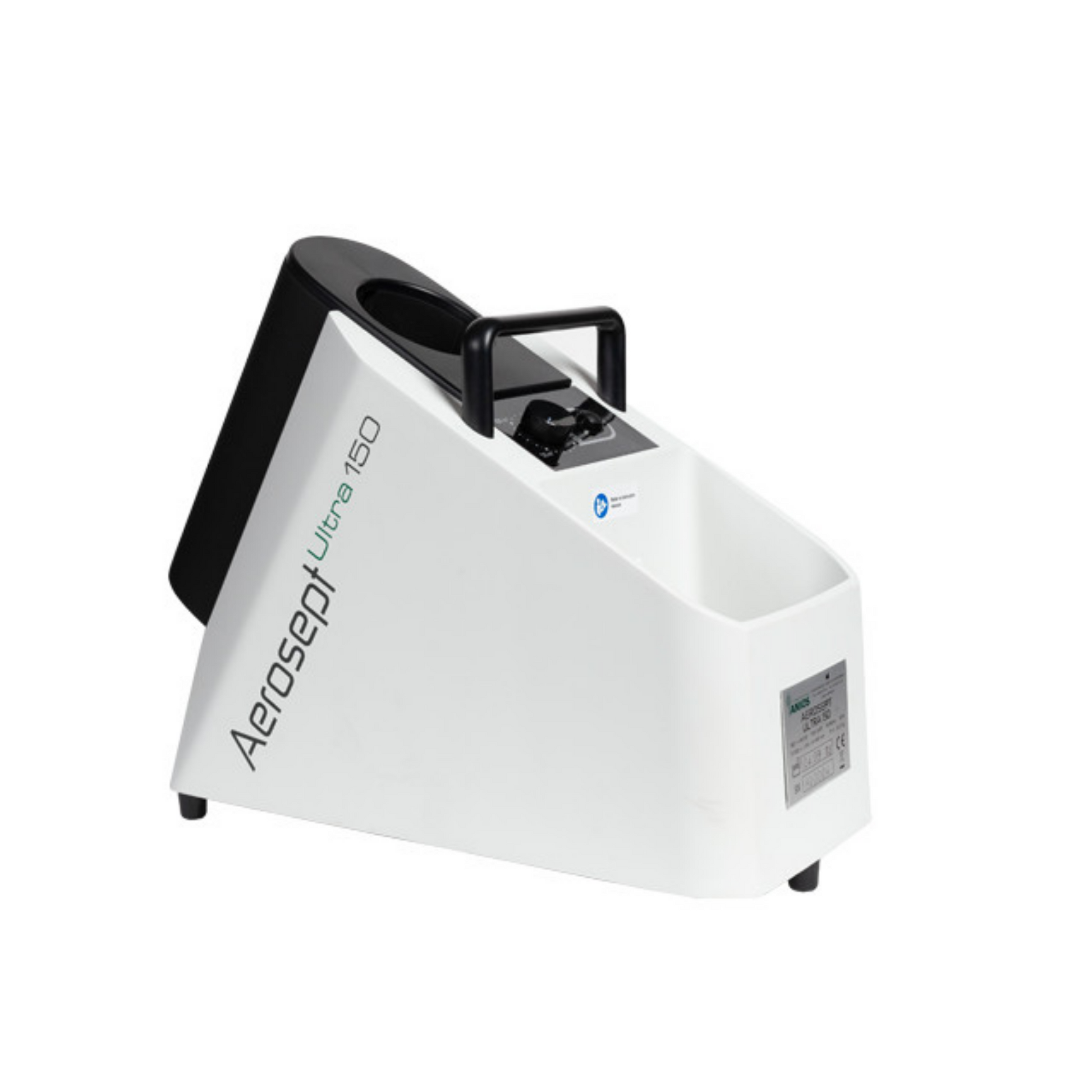

Self-contained and fully automatic atomizer intended for the disinfection of previously cleaned surfaces.

Treatment capacity: room from 30 to 150 m³

2 operating modes:

Manual for access to essential information

Connected with tablet or smartphone control for access to all options

Traceability on digital media

New patented technique: ultrasonic atomizer

New technology without air compressor

Process compliant with standard NF T 72-281

INDICATIONS

Use with:

ASEPTANIOS AD*
- Bactericide and yeasticide in 30 min.
- Mycobactericidal in 45 min.
- Fungicide and sporicide in 60 min.

ASEPTANIOS OXY +*
- Bactericide and yeasticide in 15 min.
- Mycobactericide and fungicide in 30 min.
- Sporicidal in 60 min.

A SIMPLE PROCESS

• Device connected to smartphones and tablets: allows remote control during use (Bluetooth connection).
• Instant visualization of operation during broadcasting by light indicator on the device or directly on the application (if the device is within Bluetooth range of the digital medium).
• Volume and speaker selection possible by input or barcode.
• Indication of the start and end time of the cycle.
• Setting the cycle start time.
• Automatic calculation of diffusion and contact time using a peristaltic pump.
• Pre-registration possible from 1 to 6 users and from 1 to 6 rooms.

A PROCESS WITH BOOSTED PERFORMANCE

• Ultrasonic nozzle diffusing a fluid which is distributed evenly over all surfaces to be treated.
• Controlled aerosolization for optimal distribution of the solution in the room.
• Self-regulation of nozzle flow for optimization of fog quality and efficiency.
• Perfectly stabilized concentration 7 ml/m³.
• Regulation of the nozzle vibration frequency to obtain an optimal particle size (drop size).

A SECURE PROCESS

• Remote start without human presence, delayed from 1 min to 9 hours.*
• Stop in case of malfunction with error traceability.
• Remote and real-time control via the application.
• Complete traceability with visibility in the event of any possible operating fault.
• No product projection: can equipped with a nozzle avoiding direct contact with the product.

OPTIMAL TRACEABILITY

• Tracked and recorded information, available on the application.

• Ability to retrieve essential information relating to disinfection:
- user and product identification
- identification of medical devices and materials
available in the room.
- batch number*
- volume of product used
- duration of the operation
- monitoring of the progress of the cycle
- anomalies encountered…
*if the user has completed the information in the application.

TECHNICAL CHARACTERISTICS

Reserve capacity: 2L can
• Nominal flow rate: approx. 0.7L/hour
• Empty weight: 9 kg
• Dimensions: 400 H x 200 W x 500 D mm
• Power supply: 100-240 V (±10%) – 50/60 Hz – 32 W

ENVIRONMENTAL CONDITIONS

• Use: indoors only
• Temperature :
In use: 20°C ±2°C at start-up Transport / Storage: between -5°C and +70°C
• Humidity level:
In use: between 50% and 75% relative humidity at start-up
Transport / Storage: between 40% and 80%
• Atmospheric pressure / Altitude of use: Maximum: 795hPa (corresponding to an altitude of 2000m)
• Network fluctuations: 100-240VAC ± 10%
• Overvoltage category: II
• Pollution level: 3

INSTRUCTIONS FOR USE

Position the device (equipped with its container of disinfectant product) in a corner of the room to be treated approximately 1 meter from the walls (safety perimeter).
The spray gun should be aimed toward the center of the room.
No obstacles in front of the device along the entire spray trajectory.
• Turn on the device.
• Select the room volume then press the start/stop push button.
• Delayed start after a 1-minute delay required to leave the room.
• Automatic stop at the end of the program.
• Ventilate the room.
* Refer to the user manual for the full procedure

PRECAUTIONS FOR USE

Before using the appliance, read the instructions. The products used in this appliance are Dangerous -
Follow the precautions for use indicated on the label of the product used (established according to the European rules in force on classification and labeling of chemical products). Use biocides with caution. Before any use, read the label and the information concerning the product.

In order to maintain the good general condition of the device, we recommend that you perform regular maintenance and servicing. The procedures are described in the user manual, available on request.
